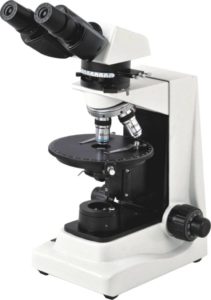

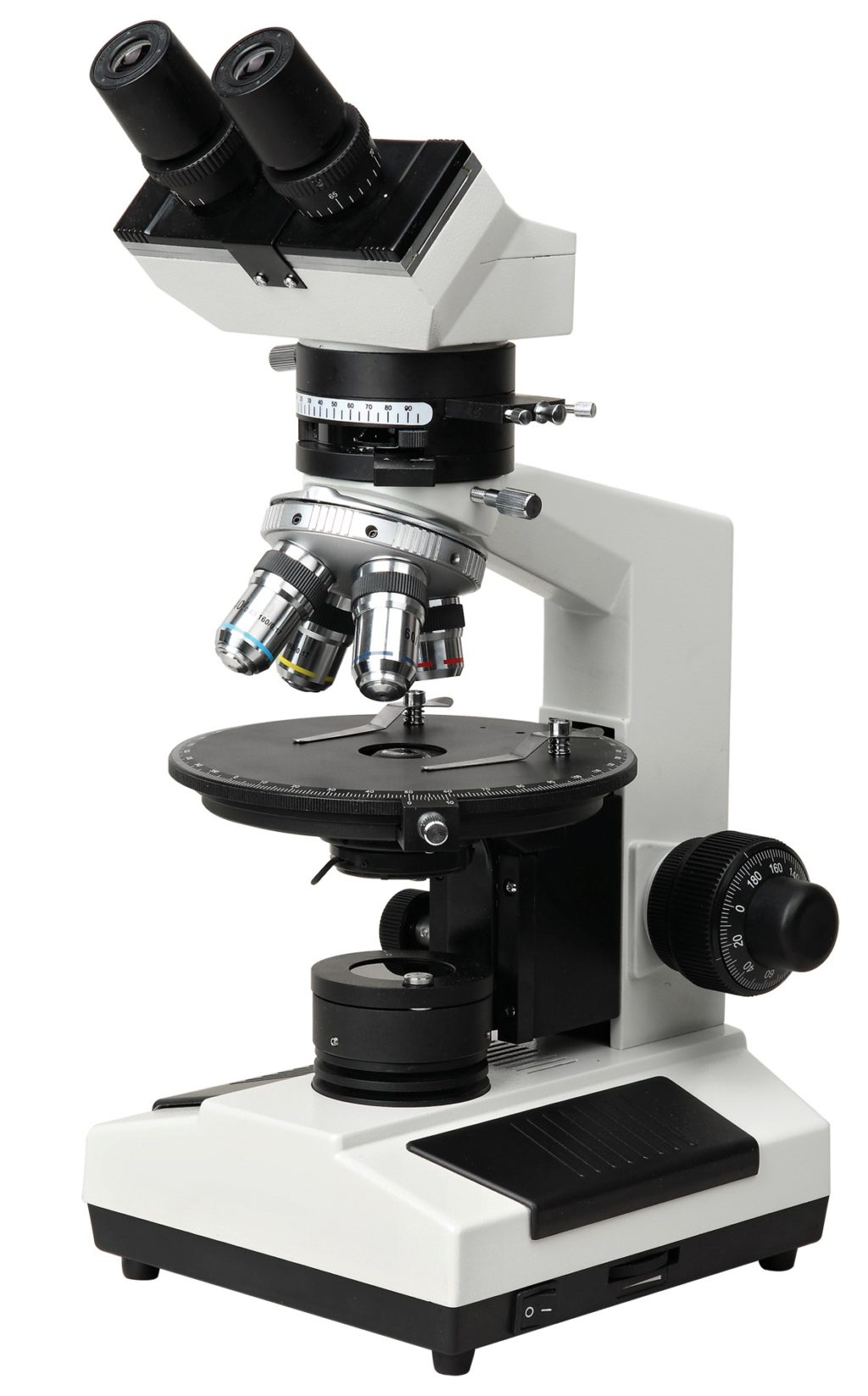

BPM560 Polarizing Transmitted Microscope

Availability:

In stock


Compare
  • Sliding Binocular (Trinocular) Head at 45°, 360° Rotatable
  • Eyepiece WF10×/ 18 with Scale of Crosshair
  • Strain free Achromatic Objective 4×, 10×, 40×
  • Abbe Condenser with Iris Diaphragm & Filter
  • Sliding in/ out of Optical Path, Located on the Top of Collector
  • 6V/ 20W Halogen Lamp, Brightness Adjustable
  • With polarizing accessories

In stock

$1,650.00 $2,150.00

Introduction

The BPM560 is equipped with a smooth, rotating, graduated stage and a set of polarizers that allow observation of all types of transmitted light polarized specimens such as thin sections of minerals, polymers, crystals and particulates.

It is equipped with a comfortable viewing, adjustable binocular head and a fine set of achromatic objectives giving a magnification range of 40X – 400X. The analyzer mounted in the head is retractable and the polarizer is mounted over the collector near the lamp and is rotatable though 360deg. The microscope is also supplied with a rack and pinion mounted, adjustable condenser with a 20W illumination source and coarse/fine focus knobs with limit stoppers and tension adjustment.

1.       Easy to operate.
2.       Eyepiece with Scale of Crosshair, easy to analyze.
3.       With polarizing accessories.

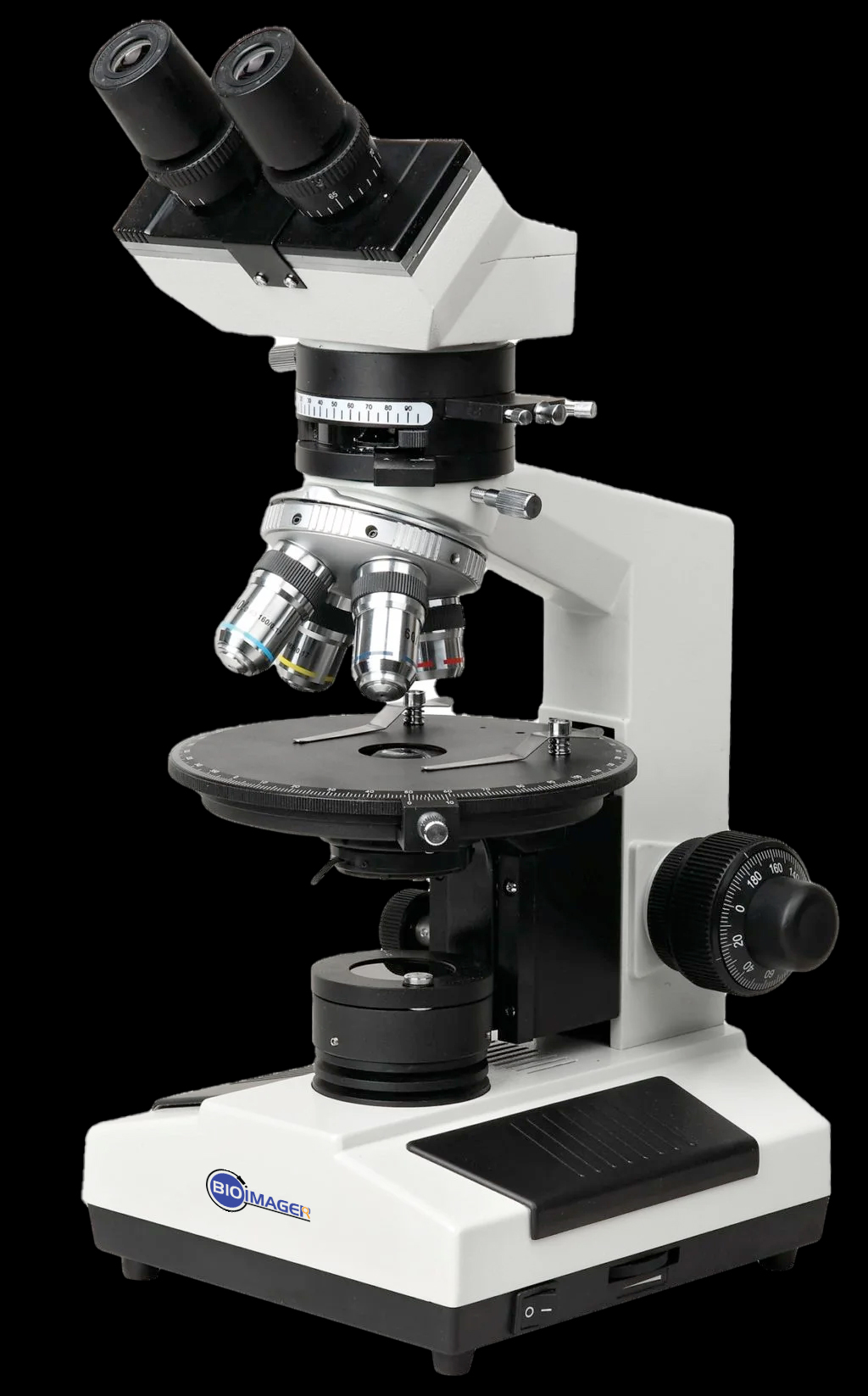

BPM560 Polarizing Transmitted Microscope

Application
With the features of easy operation, complete functions and economy, it is an ideal instrument in geology, petroleum, coal, chemicals and physic fields. It is also widely used in academic demonstration and scientific research.

Specification

 ModelBPM560

B

BP560

T

Viewing HeadSliding Binocular Head at 45°, 360° Rotatable
Sliding Trinocular Head at 45°, 360°Rotatable
EyepieceEyepiece WF10×/ 18 with Scale of Crosshair
Eyepiece WF10×/ 18
ObjectiveStrain free Achromatic Objective 4×, 10×, 40×
NosepieceToward Quadruple Nosepiece, Center Adjustable
AnalyzerRotatable Analyzer with Gradation 0°-90°
Bertrand LensBertrand Lens, Sliding in/ out of Optical Path
Optical Compensatorλ Slip(first class red)
1/ 4λ Slip
Quartz wedge
Revolving

Round Stage

Diameter Φ160mm, Graduated in1° Increments, Minimum Resolution 6′ when using Vernier Scale
CondenserAbbe Condenser with Iris Diaphragm & Filter
FocusingCoaxial Coarse & Fine Adjustment, Range 28mm, Fine Division 0.002mm
PolarizerSliding in/ out of Optical Path, Located on the Top of Collector
Illumination6V/ 20W Halogen Lamp, Brightness Adjustable

Note:  ● Standard Outfit, ○ Optional

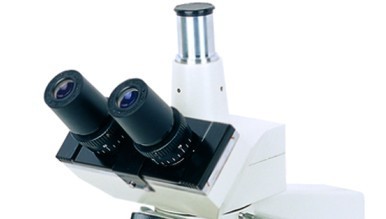

Trinocular head, to add easily a digital camera.

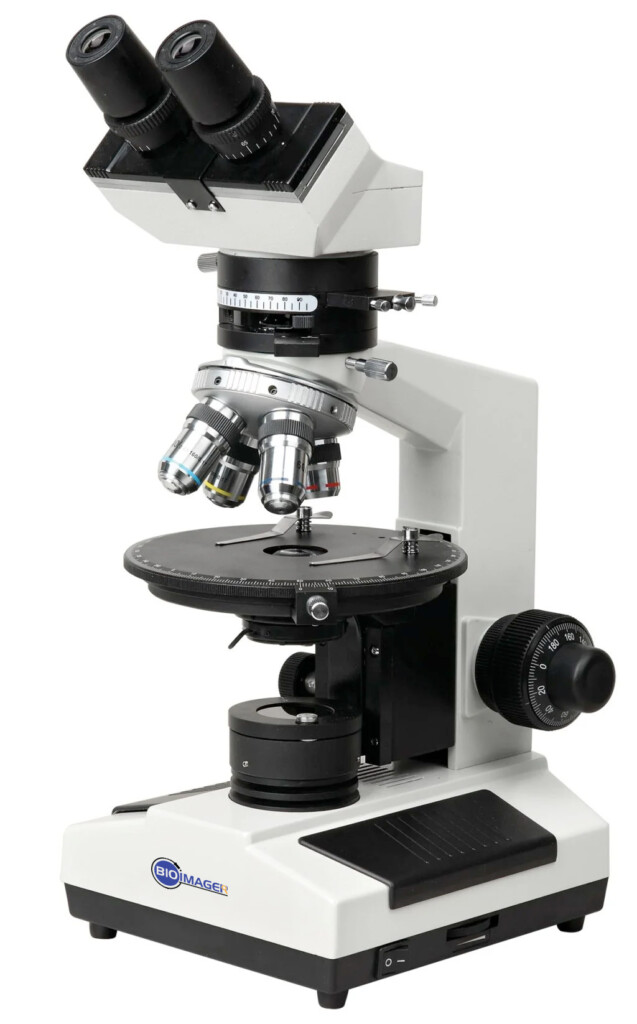

BPM560 Polarizing Transmitted Microscope
