BPM530 Reflected Polarizing Microscope

Availability:

In stock


Compare

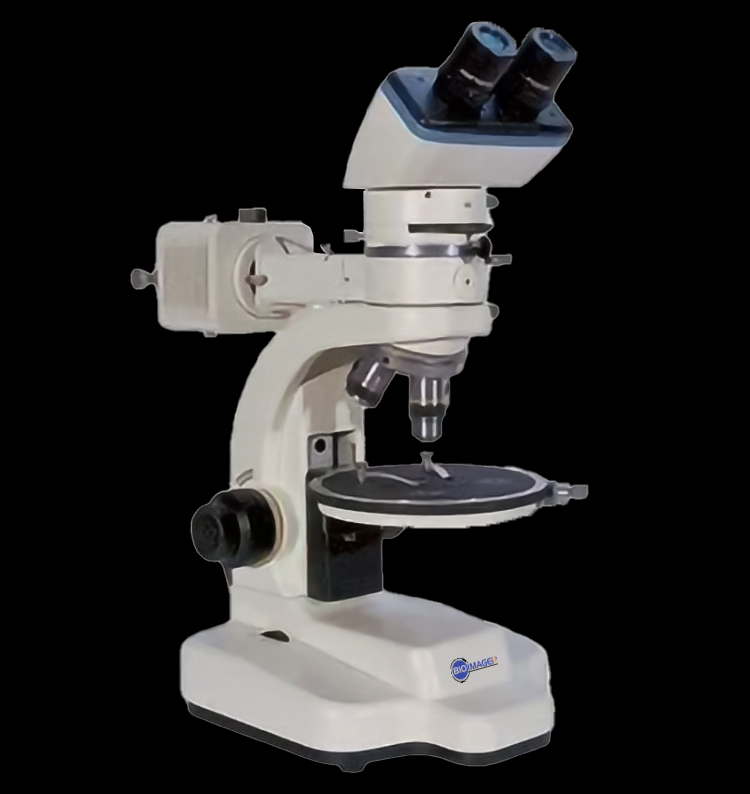

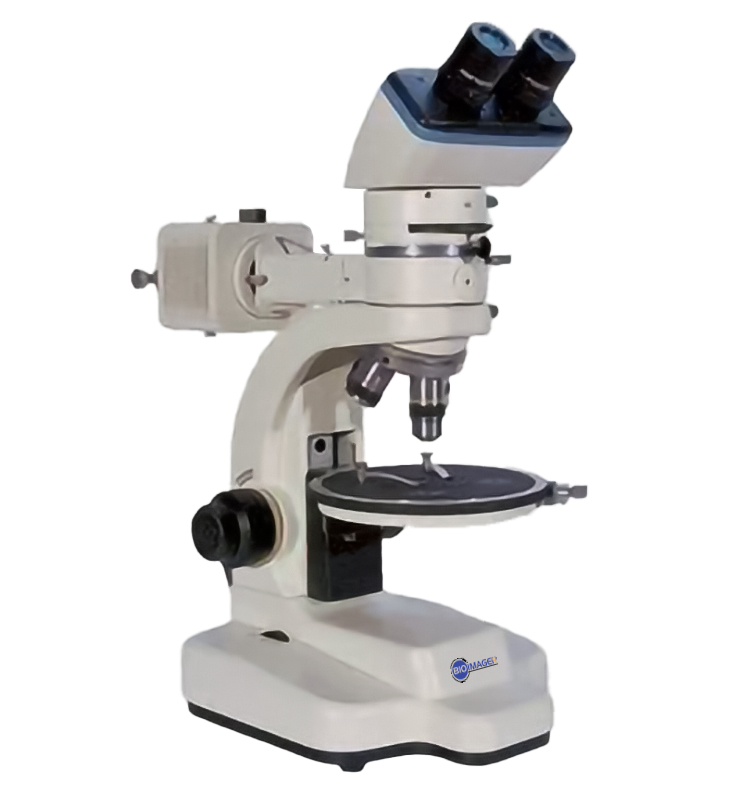

BPM530 Reflected Polarizing Microscope

  • Reflected polarizing microscope for normal inspection and education.
  • Sliding binocular(trinocular)viewing head, Inclined at 45°
  • Eyepiece WF 10×/20 Strain free achromatic objective 4×,10× Strain free plan achromatic objective 25×, 40×, 63×
  • Optical Compensator λ Slip (First class red), 1/ 4λ Slip, Quartz wedge

In stock

$2,175.00 $3,125.00

BPM530 Reflected Polarizing Microscope

  • Reflected polarizing microscope for normal inspection and education.
  • Sliding binocular(trinocular)viewing head, Inclined at 45°
  • Eyepiece WF 10×/20 Strain free achromatic objective 4×,10× Strain free plan achromatic objective 25×, 40×, 63×
  • Optical Compensator λ Slip (First class red), 1/ 4λ Slip, Quartz wedge

Introduction

The BPM530 series reflected polarizing microscopes are specifically designed for geology, minerals, metallurgy,university teaching laboratories and other sectors. They also can be used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry. Digital camera can be used together with the microscope for image analysis.

Features

1. Reflected polarizing microscope for normal inspection and education.

2. Widely used in petrology, geology, mineralogy, metallurgy, materiology and so on.

Specification

ModelBPM530

B

BPM530

T

Viewing HeadSliding binocular viewing head, Inclined at 45°
Sliding trinocular viewing head, Inclined at 45°
EyepieceEyepiece WF10×/20 with scale of cross hair
Eyepiece WF10×/ 20 with graticule
Eyepiece WF 10×/20
ObjectiveStrain free achromatic objective 4×,10×
Strain free plan achromatic objective 25×, 40×, 63×
Lamp house adjustment objective
NosepieceBackward quadruple nosepiece, Center adjustable
AnalyzerRotatable analyzer with gradation 0°-90°
Bertrand LensBertrand lens, Sliding in/out of optical path
Optical Compensatorλ Slip(First class red), 1/ 4λ Slip, Quartz wedge
Revolving Round StageDiameter Φ160mm, Graduated in 1°Increments, Minimum resolution 6′ when using vernier Scale
FocusingCoaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm
Illumination12V/ 50W Halogen lamp, Brightness adjustable
AccessoriesMechanical stage, Moving rang 30×40mm
Specimen presser
Micrometer

Note: ●Standard Outfit, ○Optional
