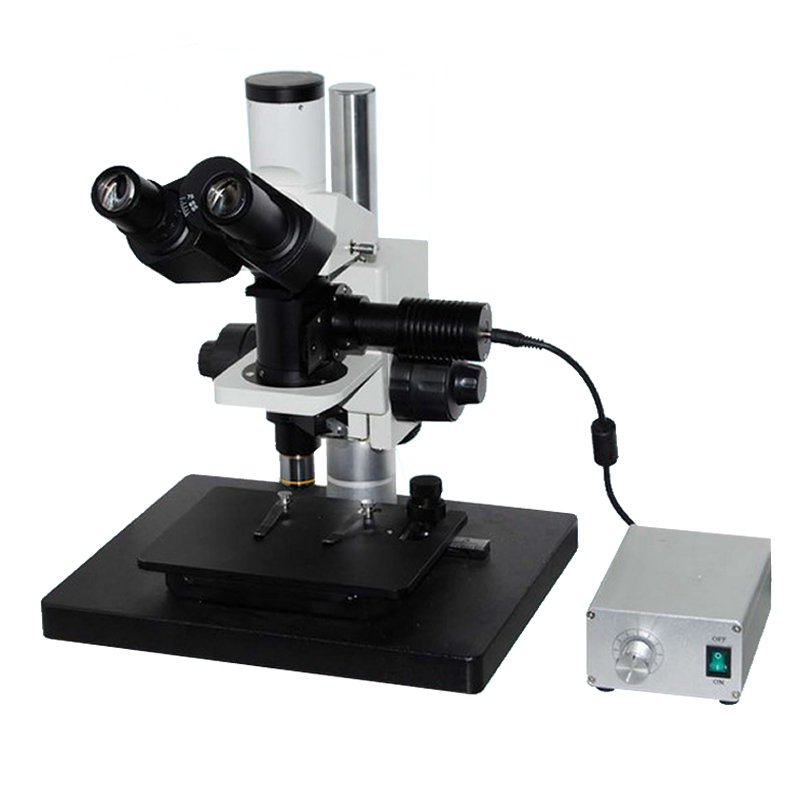

BMU200DIC Compact Metallurgical Upright with BF/Pol/DIC Imaging Capabilities

Availability:

In stock


Compare
  • Compact Upright metallurgical microscope,
  • Reflected Only or Reflected & Transmitted illuminations

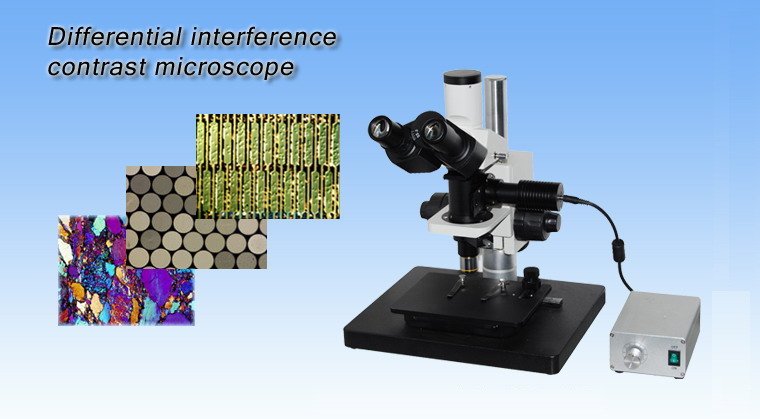

  • Bright field, polarization and DIC Nomarsky observation system
  • Monocular or trinocular viewing head
  • Extral wide field eyepiece EW10×/22, eyepiece tube Φ30mm
  • Infinite Plan Achromatic Objectives of  10x (included) and optional 5x, 20x
  • Optional design of inverted mode.

In stock

$6,500.00 $8,000.00

BMU200DIC Metallurgical Microscope is mainly used in biology, medicine, agriculture and industrial reasrch area. It is the ideal instrument to be a part of an imaging device, for teaching demonstration and scientific research.

Highlighted features are:

–High Quality Infinity Opitcal System
–Monocular, Trincular Head Optional
–DIC Slide For 5x/10x/20x Objective
–Strain-free Infinity LWD Plan Achromatic 5x,10x,20x Optional
–Polarizing System, Switch In/Out Of Light Path

BMU200DIC Compact Metallurgical Upright with BF/Pol/DIC Imaging Capabilities





BMU200DIC Metallurgical MicroscopeMT
SystemInfinity Optical System, Total Magnification 100x

(Optional: 50x-200x)

Mechanical Tube Length ∞
Objective Conjugate Distance∞
HeadMonocular

o

Trinocular Head, 30° Inclined, Light Separate Ratio 80:20

o

EyepieceWF10x/18mm, Eyepiece Tube Dia.23.2mm, Parfocal Distance 10mm
ObjectiveStrainfree LWD Infinity Plan Achromatic PL10x/0.25, W.D.20.2mm
Working StageDouble Layer Mechanical Stage 180*145mm, Moving Range 35*30mm
FocusingCoaxial Coarse & Fine Focus Knob, Tension Adjustable, Minimum Division 0.002mm, Height Adjustable 133mm, Max Sample Height 130mm
DICDIC Slide Match 5x/10x/20x Objectives, Horizontal Adjustable
PolarizingPolarizer, 360° Rotatable, Switch In/Out
Analyser, Switch In/Out
Light SourceCoaxial Illumination, High Light LED, Brightness Adjustable
PowerWide Range Voltage 85~265V, 50/60Hz

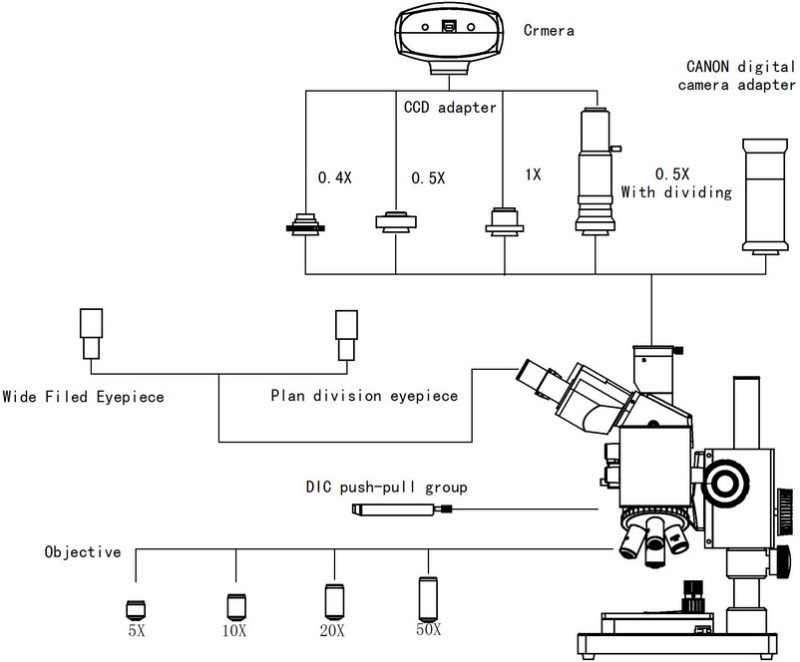

Optional Accessories
EyepieceWF15x/11mmBMU2-E15
WF20x/11mmBMU2-E20
ObjectiveStrain-free LWD Infinity Plan Achromatic PL5x/0.1, W.D.18.2mmBMU2-5X
Strainfree LWD Infinity Plan Achromatic PL20x/0.4, W.D.8.8mmBMU2-20
AdapterCCD Adapter 0.4xBMU2-0.4X
CCD Adapter 0.5xBMU2-0.5X
CCD Adapter 1.0xBMU2-1.0X
CCD Adapter 0.5x With Dividing 0.1mm/DivvBMU2-0.5XD
Digital SLR Camera Adapter for Canon EF SeriesBMU2-SLR
Main parametersTotal magnification100X (standard configure)50x-200x (Optional)
Mechanical tube length
Conjugate distance of objective
Eyepieceachromatic Wide-field plan eyepieceSWF 10X
field of view number
Ф22mm
Eyepiece interfaceФ30mmParfocal distance10mm

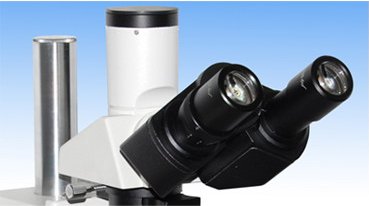

TrinocularObservation angle of 30° with photography port, beam split ratio 80%:20%
Strain-free plan achromatic objectiveMagnificationNumerical apertureWorking distance (mm)Thickness of cover glass (mm)Remarks
10X0.2520.2
AnalyzerInsert type,can be switch freely,the direction of polarization has preset, no use for adjust
PolarizerInsert type,can be switch freely,360°rotatable

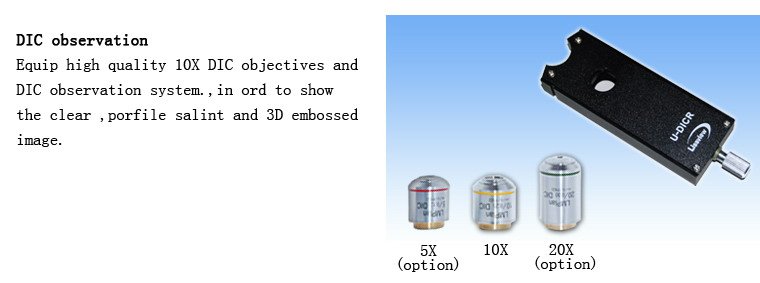

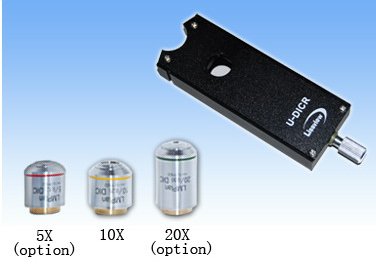

DIC SliderDIC slider matching 5X/10X/20X objective,horizontal adjustable

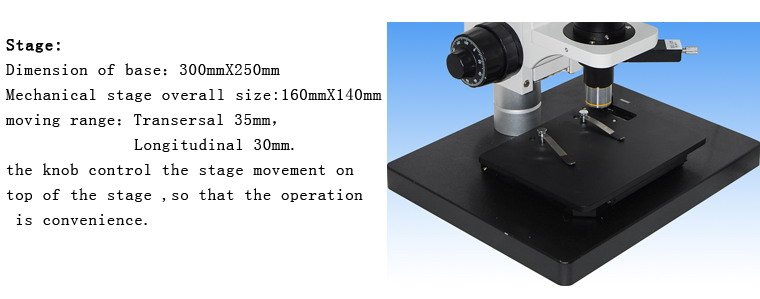

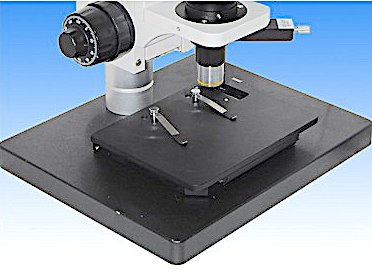

X-Y Stage
double layer mechanism stage, size:180 X 145mm,moving range:35X 30 mm(X-Y)

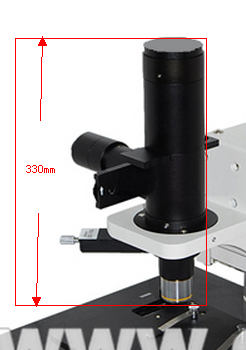

Vertical availability distanceFocus system available distance 133mm, observational specimen maximal thickness up to 130mm.
focus systemCoaxial coarse/fine focus system, minimum division of fine focusing: 2μm

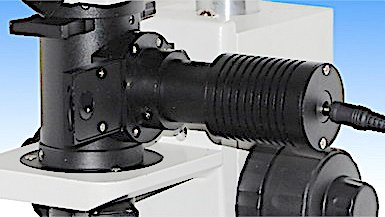

IlluminationCoaxial illumination using high brightness white LED. Brightness adjustable
Main power supplyAC:85V~265V 50/60Hz,fuse specification:250V 3.0A
Accessory (optional)Objective
20X strain-free plan achromatic objective,NA:0.40,working distance:8.0mm
Digital camera1.3, 3.0, 5.0 , 10 mega pixels,with image analysis software.
BMU200DIC Compact Metallurgical Upright with BF/Pol/DIC Imaging CapabilitiesBMU200DIC Compact Metallurgical Upright with BF/Pol/DIC Imaging Capabilities

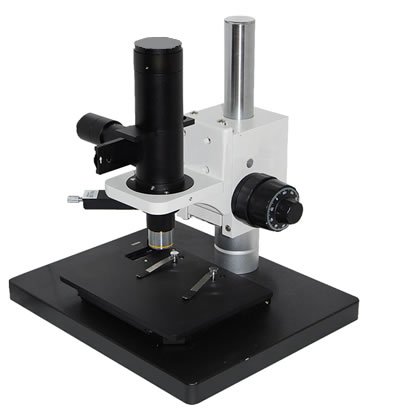

BMU200M with MonocularBMU200T with Trinocular head

Transmitted illumination is available by using a different stand which has a transmitted LED.

The system can be customized for inverted mode.
