Isolation chamber for virus positive patients, equipped with its own negative pressure filtration system and provides maximum protection and operational safety for the possible contamination of an operational person, nurse, doctor or technician. Self-isolation or quarantine of sick infected person for further treatment.

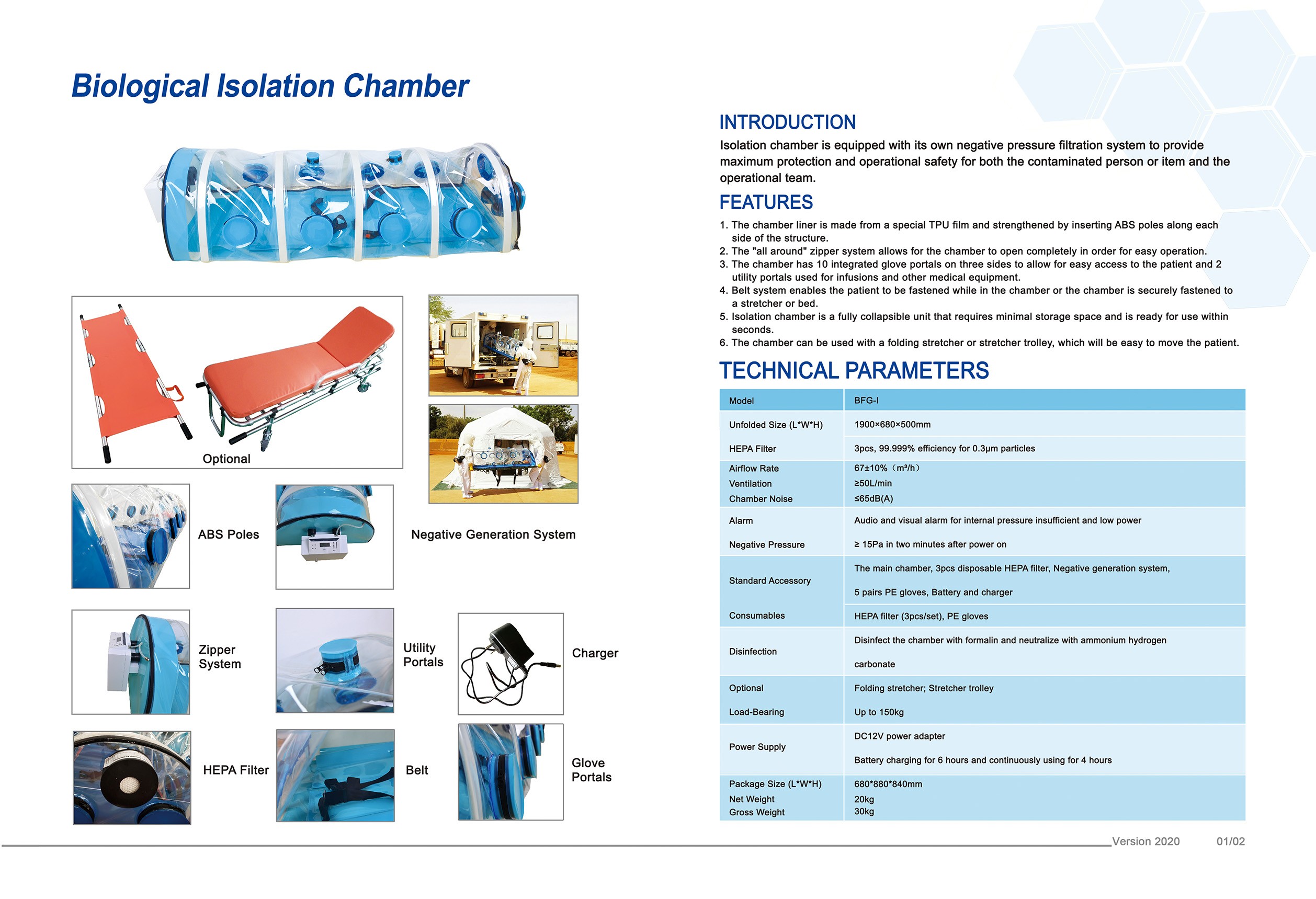

Biological Isolation Chamber
-50%Isolation Chamber for Infectious Disease Protection
1. The chamber liner is made from a special TPU film and strengthened by inserting ABS poles along each side of the structure.
2. The “all-around” zipper system allows for the chamber to open completely in order for easy operation.
3. The chamber has 10 integrated glove portals on three sides to allow for easy access to the patient and 2
utility portals used for infusions and other medical equipment.
4. Belt system enables the patient to be fastened while in the chamber or the chamber is securely fastened
to a stretcher or bed.
5. Isolation chamber is a fully collapsible unit that requires minimal storage space and is ready for use within seconds.
6. The chamber can be used with a folding stretcher or stretcher trolley, which will be easy to move the patient.
ABS Poles | Belt | Charger |

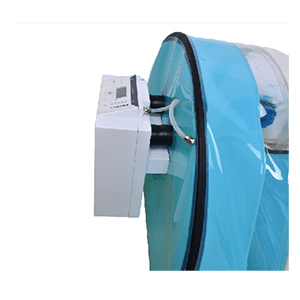

Glove Portals | HEPA Filter | Negative Generation System |

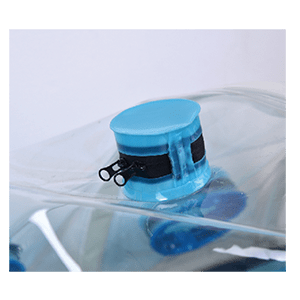

Utility Portals | Zipper System |
Model | BFG-I | BFG-Ⅱ |
Unfolded Size(L*W*H) | 1900×680×500mm | 1100×680×500mm |
HEPA Filter | 3pcs, disposable, 99.999% efficiency for0.3μm particles | |
Airflow Rate | 67±10% (m3/h) | |
Ventilation | >50L/min | |
Chamber Noise | <65dB(A) | |
Alarm | Audio and visual alarm for internal pressure insufficient and low power |
|
Negative pressure | Up to -15Pa in two minutes after power on |
|
Standard accessory | The main chamber, 3pcs disposable HEPA filter, Negative generation system, 5 pairs PE gloves, Battery and charger |
|
Consumables | HEPA filter (3pcs/set), PE gloves | |
Disinfection | Disinfect the isolation chamber with formalin and neutralize with ammonium hydrogen carbonate |
|
Optional | Folding stretcher; Stretcher trolley | |
Load-bearing | Up to 150kg |
|
Power Supply | DC12V power adapter Battery, charging for 6 hours and continuously using for 4 hours | |
Package Size (L*W*H) |
680*880*840mm | |
Net Weight |
20kg | |
Gross Weight |
40kg |
Standard Components
The main chamber
Particle filter
Negative generation system
20pcs PVC gloves
Battery and charger
Consumables:
PVC Gloves
Particle filter
