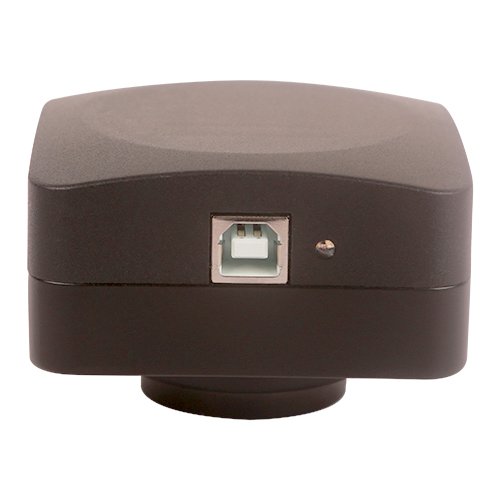

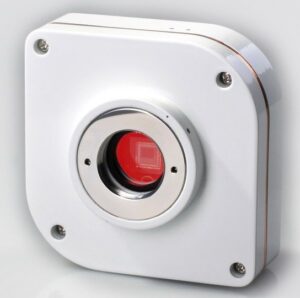

BIO-WCAM Series C-mount WIFI CMOS Camera


  • WiFi C-Mount CMOS Camera
  • Resolution: 1080P, 720P or 0.3MP

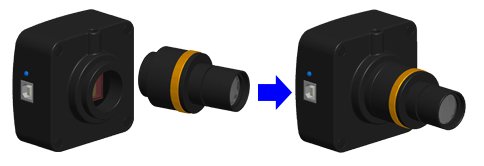

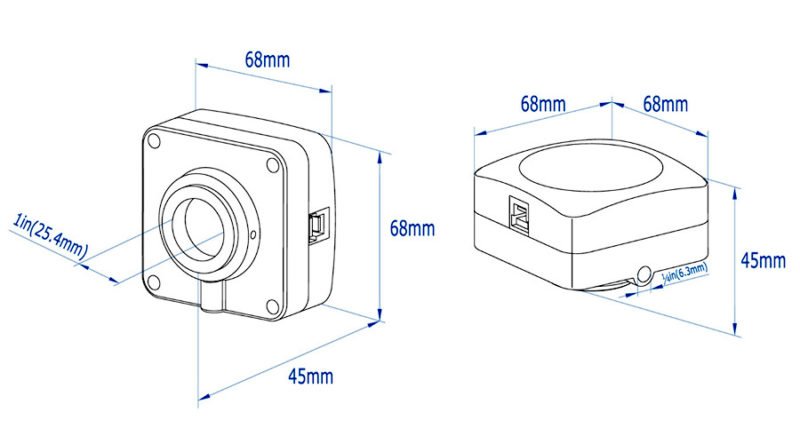

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
  • Scientific research grade camera with Aptina CMOS sensor;
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
  • Streams images to several devices simultaneously;
  • Integrated zinc aluminum alloy housing;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application software(only support simple video viewing capturing for IOS/ android system);
  • Custom programmable with SDK provided (Windows/Linux/OS);

$USD 229.00 $USD 230.00

  • C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
  • Scientific research grade camera with Aptina CMOS sensor;
  • Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smartphones, computers, and tablets with iOS, Android, and Windows operating systems;
  • Streams images to several devices simultaneously;
  • Integrated zinc aluminum alloy housing;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application software(only support simple video viewing capturing for IOS/ android system);
  • Custom programmable with SDK provided (Windows/Linux/OS);

BIO-WCAM is WIFI camera and it adopts ultra-high performance CMOS sensor as the image-picking device. WIFI is used as the data transfer interface.

When the BIO-WCAM camera is attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smartphones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.

The camera includes ToupView images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable  app for viewing, capturing, and editing images.

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dynamic Range
SN Ratio
FPS/Resolution Binning Exposure
BIO-WCAM1080PA
WP601080A
1080P/IMX222(C)

1/2.2″(5.38×3.02)

2.8×2.8 510mV with 1/30s
0.15mv with 1/30s
[email protected]×1080 1×1 0.059ms~1941ms
BIO-WCAM0720PB
WP600720B
720P/MT9P001(C)

1/2.5″(5.63×3.17)

2.2×2.2 1.0 V/lux-sec
61dB
43dB
[email protected]×720 2×2 Auto
BIO-WCAM0300KPA
WP600300KA
0.3M/MT9V011(C)

1/4″(3.58×2.69)

5.6×5.6 1.9V/lux-sec
60dB
45dB
[email protected]×480 1×1 Auto
SKU: BIO-WCAM Categories: , , ,
Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dynamic Range
SN Ratio
FPS/Resolution Binning Exposure
BIO-WCAM1080PA
WP601080A
1080P/IMX222(C)

1/2.2″(5.38×3.02)

2.8×2.8 510mV with 1/30s
0.15mv with 1/30s
[email protected]×1080 1×1 0.059ms~1941ms
BIO-WCAM0720PB
WP600720B
720P/MT9P001(C)

1/2.5″(5.63×3.17)

2.2×2.2 1.0 V/lux-sec
61dB
43dB
[email protected]×720 2×2 Auto
BIO-WCAM0300KPA
WP600300KA
0.3M/MT9V011(C)

1/4″(3.58×2.69)

5.6×5.6 1.9V/lux-sec
60dB
45dB
[email protected]×480 1×1 Auto



OTHER HARDWARE CONFIGURATION
Spectral Range 380-650nm (with IR-filter)
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control API Native C/C++, C#, Directshow, Twain, Labview
Recording System Still Picture and Movie
Maximum Connected Device <=3
Cooling System* Natural
OPERATING ENVIRONMENT
Operating Temperature -10℃~ 50℃
Storage Temperature -20℃~ 60℃
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply USB Charger, Not Recommend PC USB Port
SOFTWARE ENVIRONMENT
Operating System Support Microsoft  Windows  XP / Vista / 7 /8 (32 & 64 bit)
IOS IPAD or IPhone, Android PAD and Phone
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
WIFI Adapter with DHCP Enabled
Display: 17″ or Larger
CD-ROM
PAD IPAD or PAD with Android System
Mobile Phone IPhone or Smart Phone with Android System
