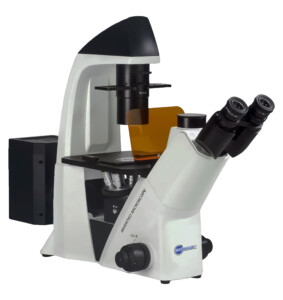

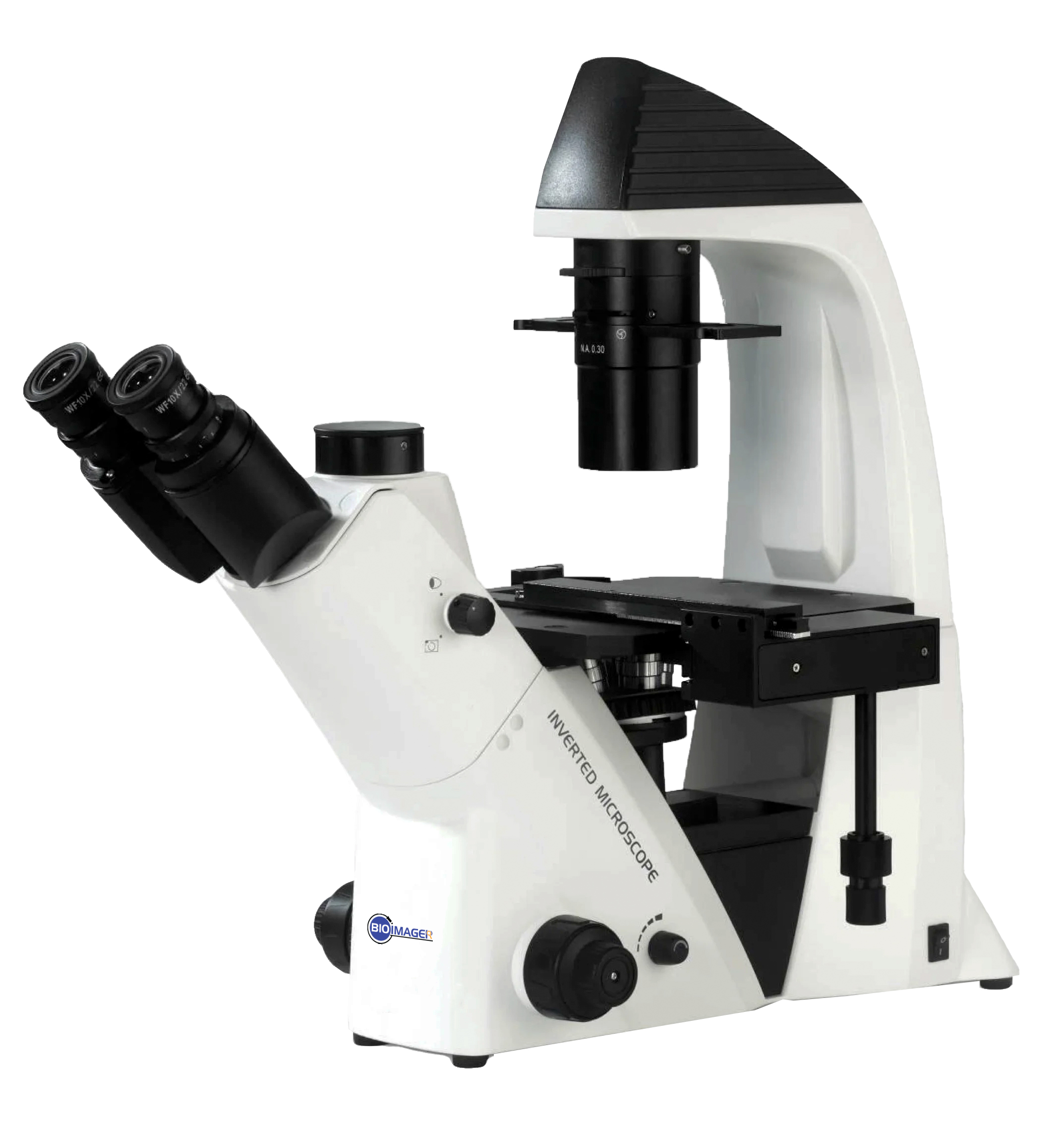

BIM640FL Inverted Fluorescence Microscope
BIM640FL Inverted Epi-Fluorescnce Biological Microscope
- BIM640FL Inverted Fluorescence Microscope
- Extralarge widefield eyepeices 10x/23 (Unique)
- 4x, 10xPh, 20xPh, 40x lenses incldued plus tens of optional obj lenses.
- with GFP, RFP & optional UV, V or any custom Excitation filters.
- Trinocular head; Top video port.
- HBO illumination
$USD 5,288.00 $USD 7,000.00
- Introduction
- Features
- Description
- Specification
- References
- Configuration
- Images/Videos
- Links
- Reviews
Wide field eyepiece, view field up to Φ23mm，more comfortable for observation

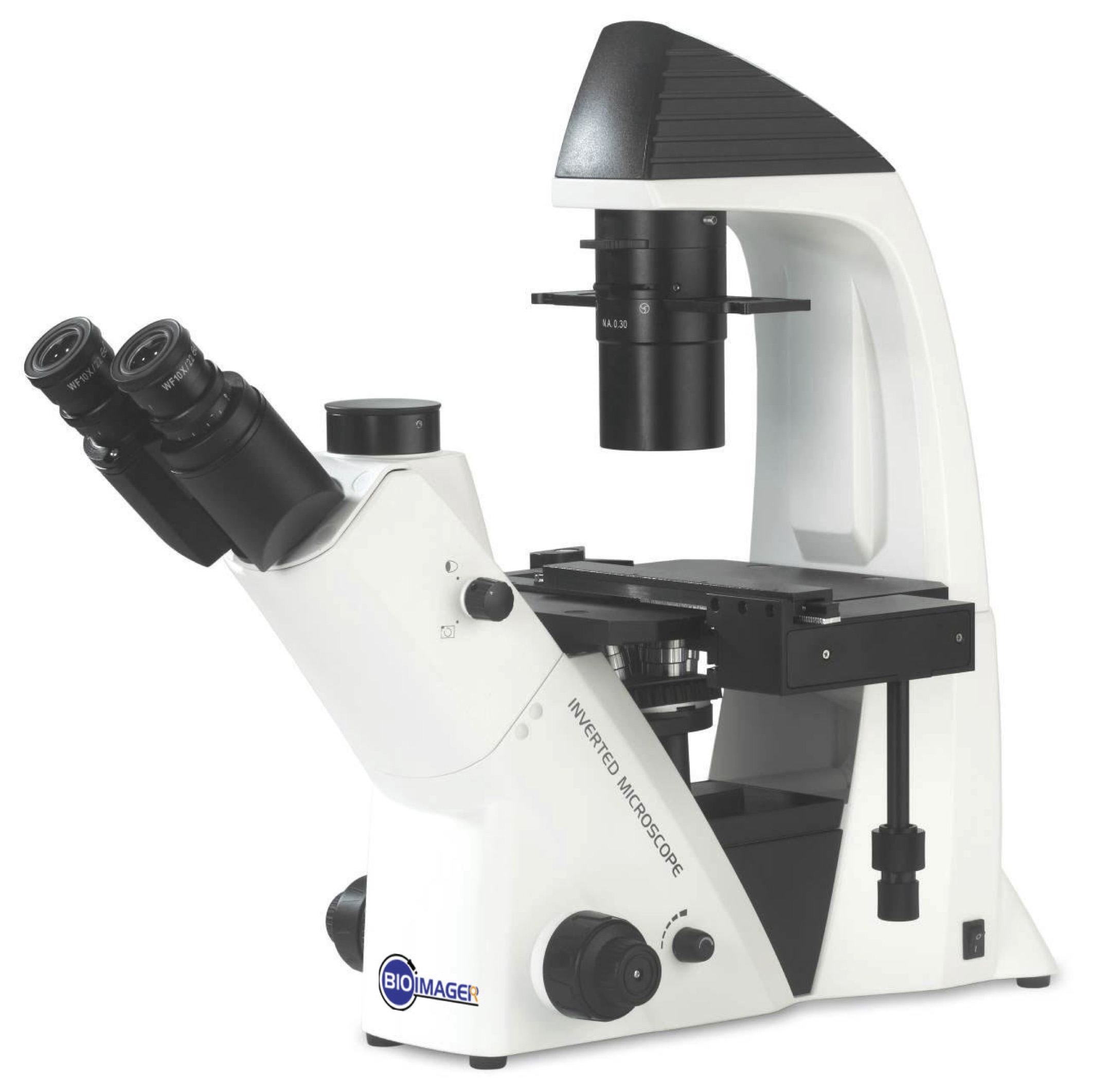

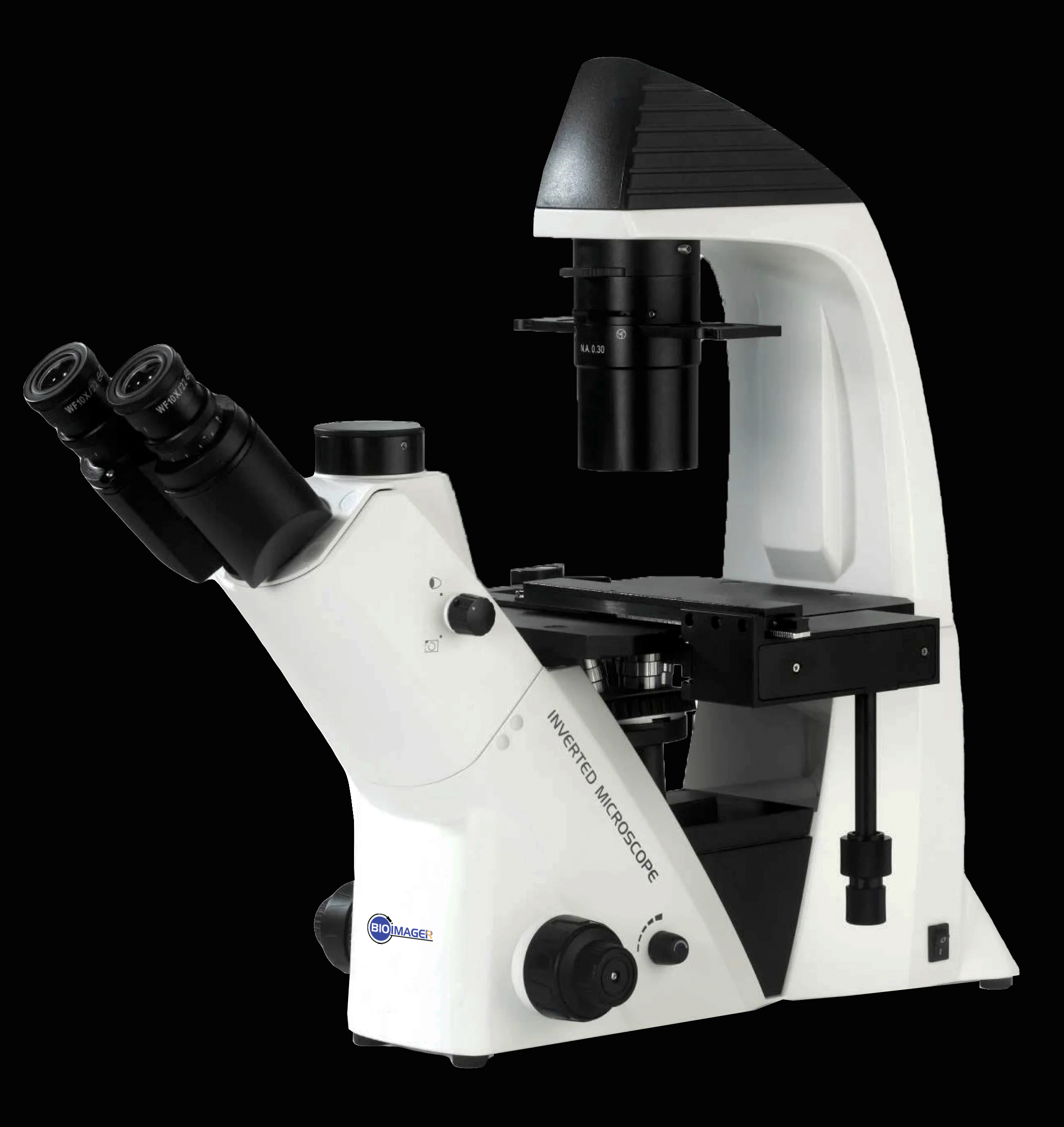

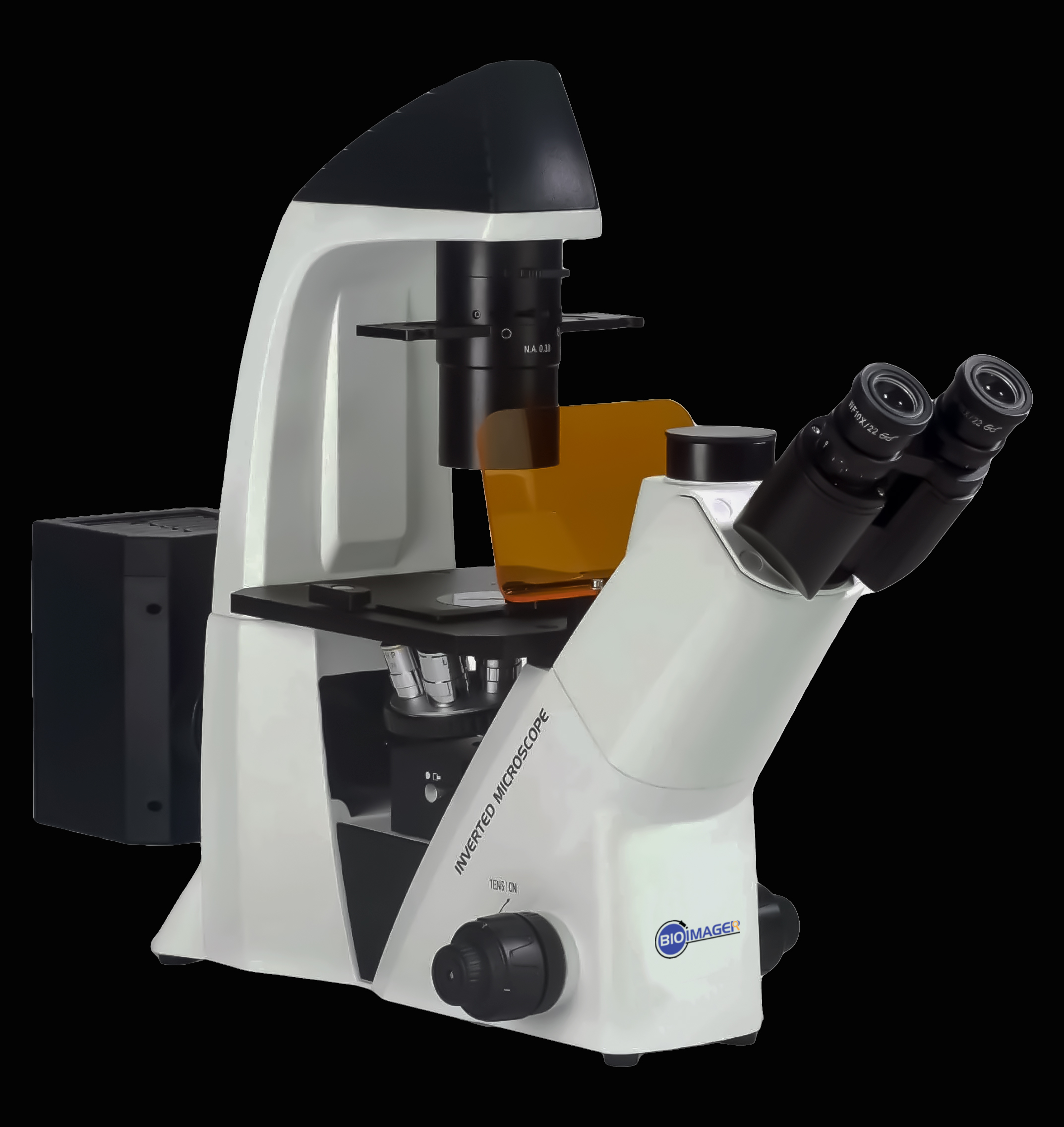

BIM640FL Inverted Epi-Fluorescence Biological Microscope
This brand new professional trinocular Epi-fluorescent inverted microscope with phase contrast features is designed to observe the specimen in culture dishes, T-flasks, petridishes or a well-plate. It comes with long working distance plan achromatic objectives, extreme widefield eyepiece, 45 degree inclined trinocular observation head, phase contrast kit, phase contrast objectives and EPI excitation fluorescent illumination system. It allows you to view transparent alive objects without dyeing specimen and obtain sharp clear fluorescent images. The microscope offers 40X, 100X, 200X, 500X, 400X and optional 1000X magnification settings.
| This fluorescent microscopy system is perfect for observing living cells in micro research laboratories. It is an ideal microscopy instrument for universities, medical offices, epidemic prevention department and farming & stock raising labs, etc. | |
| Large diameter quintuple nosepiece, Easy to use | |
| Beam Splitter (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece) |
|
| Mechanical XY stage can be installed from left or right side | |
 |
||

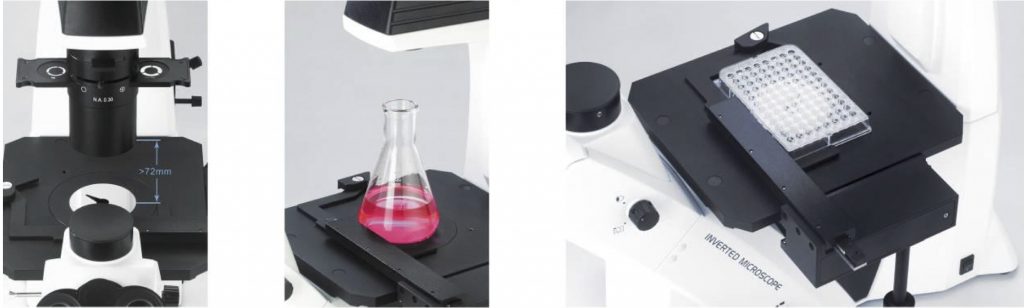

| Long working distance condenser N.A. 0.30，Working distance：72mm Working distance: 195mm (without condenser)，available for extra high culture dish | Large size stage, convenient for research. Size：240mm（X）× 210（Y）mm | Mechanical stage available for 96 holes plate.
Moving range：128mm（X）× 80（Y）mm |
High Quality Objective Lenses
| Long Working Distance
Objective Lenses |
Infinity Plan Objective 10x/0.25 WD=8.3mm | |
| Infinity Plan Objective 20x/0.40 WD=7.2mm | ||
| Infinity Plan Objective 40x/0.60 WD=3.4mm | ||
| Infinity Plan Phase Contrast Objective 20x/0.40 WD=7.2mm |
Technical Specifications
| BIM640FL Inverted Fluorescent Microscope | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Head | Seidentopf Trinocular Head, Inclined 45°, Interpupilary Distance 48~76mm Light Split (Both) 100:0 and 80:20 |
||||||||||||
| Eyepiece | WF10x/22mm, Diopter Adjustable | ||||||||||||
| Nosepiece | Large Diameter Quintuple | ||||||||||||
| Objective | LWD Infinity Plan Objective LPL10x/0.25 WD=8.3mm LPL20x/0.40 WD=7.2mm LPL40x/0.60 WD=3.4mm Infinity Plan Phase Contrast Objective 20x/0.40 WD=7.2mm |
||||||||||||
| Focus System | Low Position, Coaxial Coarse & Fine Focusing System, Coarse Stroke 42mm /Rotation, Fine Stroke 0.2mm /Rotataion, Minimum Reading 2μm | ||||||||||||
| Stage | Mechanical Stage Size 210x241mm, Round Slide Size Dia.118mm, With Attachable Mechanical Stage For 96 Holes Plate, Moving Range 128x80mm, With Culture Dish Holder 54mm， Knob Can Be Changed By Left Or Right | ||||||||||||
| Condenser | Long Working Distance, N.A.0.3, Working Distance 72mm (With Condenser),195mm (Without Condenser For Extra High Culture Dish), Quickly Detachable | ||||||||||||
| Phase Contrast | Phase Contrast Annular Plate For 20x/40x | ||||||||||||
| Filter | Blue, Green | ||||||||||||
| Fluorescence | –Epi Fluorescence Unit, Field Diaphragm, Center Adjustable –100W Mercury Lamp –Digital Mercury Lamp Power Box, Input Voltage:100~240V –Fluorescent Filter B, G |
||||||||||||
|
|||||||||||||
| Light Source | Transmit Light, Halogen 6V30W, Koehler Illumination | ||||||||||||
| Power Supply | Wide Range Voltage 110~240V | ||||||||||||
| Optional Accessories | Item No. | ||||||||||||
| Eyepiece | WF16x/13mm | BIA64-1613A | |||||||||||
| 10x Reticle Eyepiece (0.1mm) | BIM64-10R | ||||||||||||
| Objective | Infinity LWD Plan Objective LPL4x/0.11, WD=12.1mm | BIM64-4x | |||||||||||
| Infinity Plan Phase Contrast Objective 10x/0.25 W.D.=8.3 mm | BIM64-10x | ||||||||||||
| Infinity Plan Phase Contrast Objective 40x/0.60 W.D.=3.4mm | BIm64-40x | ||||||||||||
| Phase Contrast | Phase Contrast Annular Plate For 10x | BIM64-PHA | |||||||||||
| Filter | Amber | BIM64-FA | |||||||||||
| Grey | BIM64-FG | ||||||||||||

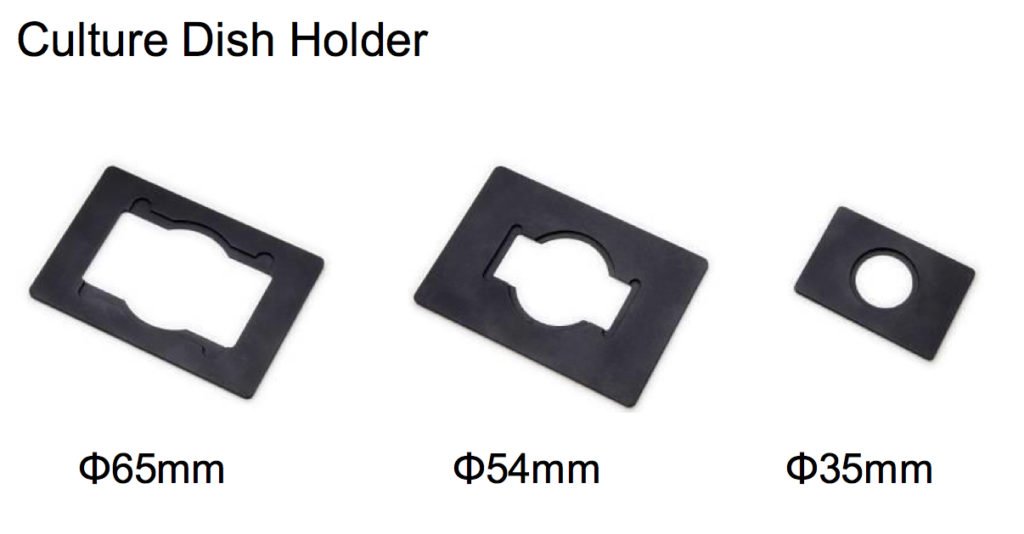

| Culture Dish Holder | 65mm | BIA-SH65 | |||||||||||
| 35mm | BIA-SH35 | ||||||||||||
| Adapter | C-Mount Adapter 0.5x (Focus Adjustable) | BIM64-0.5x | |||||||||||
| C-Mount Adapter 1.0x | BIM64-1.0x | ||||||||||||

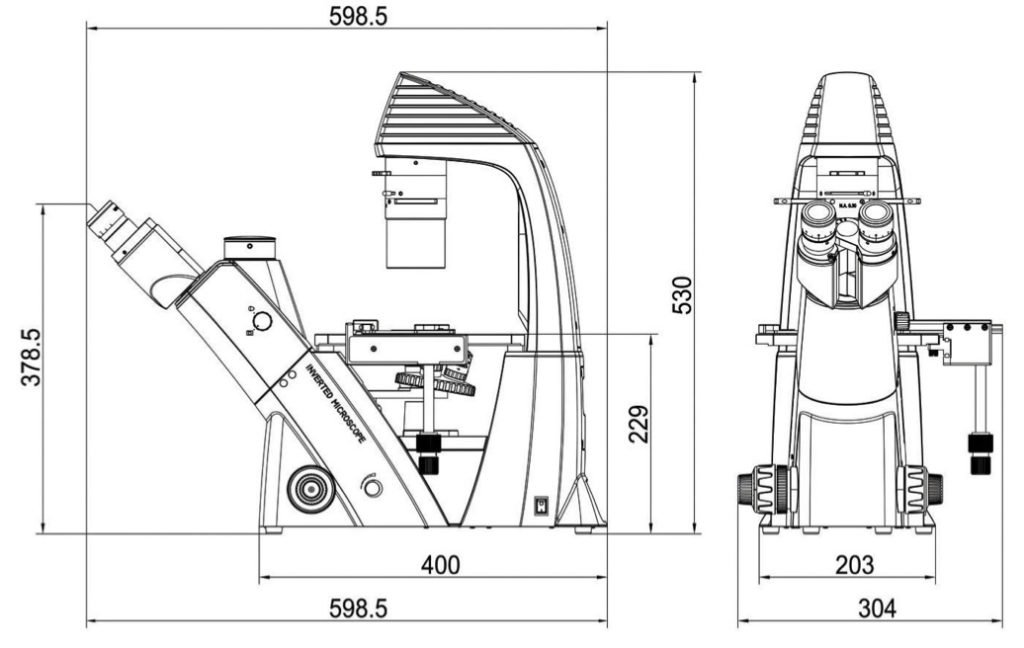

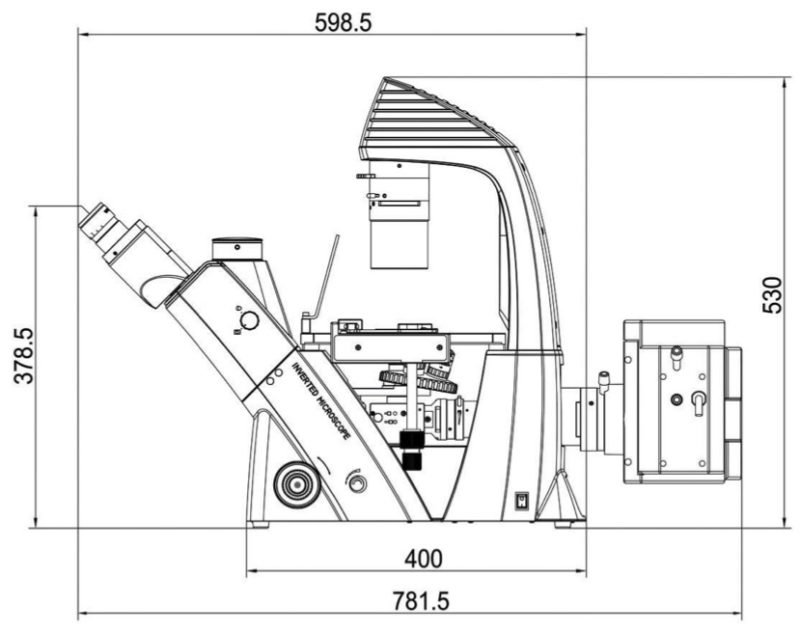

Dimensions
Recently purchased Customers:
 |
The Research Institute of McGill University Health Centre, Montreal, QC, Canada |  |
Summary of Package
- BIM640FL Inverted Fluorescence Microscope
- 4x, 10xPh, 20xPh, 40x lenses included plus tens of optional obj lenses.
- with GFP, RFP & optional UV, V or any custom filters.
- Trinocular head; Top video port.
- HBO illumination
System Diagram
Following images were collected using this microscope, BIC-C30 3MP sCMOS Camera, 0.5x C-mount adapter and the below-mentioned objective lenses. merged images were generated using Image software.
FluoCells® Prepared Slide #2: bovine pulmonary artery endothelial cells (BPAE) cells with Mouse Anti-α-tubulin, BODIPY FL Goat Anti-Mouse IgG, Texas Red-X Phalloidin, and DAPI), (Molecular Probes)
BIHR-20xBF PlanFluor EPI20XBF Plan Semi Apochromat 20X/NA0.45/WD3 Lens:
BIHR-50xBFL 50x LWD: PlanFluor EPI 50X LWD BF Plan Semi Apochromat BF/FL Objective 50X/NA 0.50/W.D 10.6mm:
BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:
FluoCells® Prepared Slide #6 (Muntjac cells with Mouse Anti-OxPhos Complex V Inhibitor Protein, Alexa Fluor 555 Goat Anti-Mouse IgG, Alexa Fluor 488 Phalloidin, and TO-PRO-3) (Molecular Probes)
BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:
