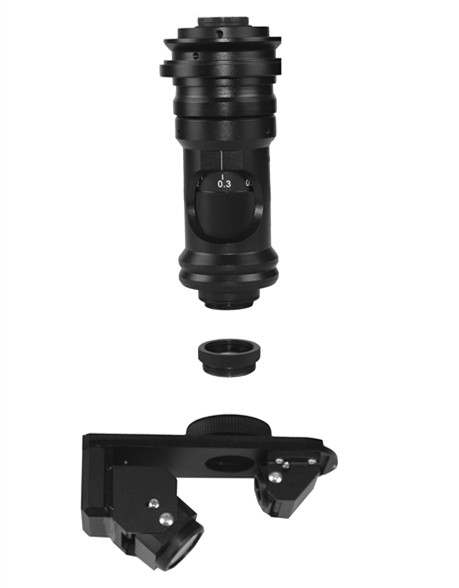

BIHT1008 Microscope Lens


BIHT1008 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.

$1,999.00 $3,400.00

BIHT1008 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.

The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.

The 3D 360′ rotary observation lens can achieve 95mm (Max) working distance, which is the highest level in the world so far.

Digital and Analog video systems can meet the different users’ demands.

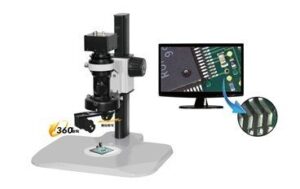

3D Video Microscope can be widely used in the areas of micro-electronics, precision electronic

inspection , PCB solder testing industries, hardware & precision parts, criminal investigation and life sciences, as well as plant morphology, etc.

Applications:

SMT                                                                       Micro-electronics

Criminal investigation                            Hardware & Precision                                  life sciences

BIHT1008 Zoom lens

1.Large field of view

2.Low  distortion and high resolution,

3.Flat and high depth of field (≥ 6mm)

4.Auto-focus for different digital and analog camera

5.Compact, practical and cost-effective

BIHT1008 Zoom Microscope can be widely used in machine version, semi-conductor and micro-electronics inspection and solder testing industry.The Zoom lens is designed with high resolution and clear image.

When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.3X, 0.5X, 1X, 1.5X, 2.2X.

By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired.

Specifications

1.Zoom Range: 0.3X-2.2X

2.Standard objective lens and coupler : 1x

3.Total Optical Magnification: 7x-300x  (17,,CD)

4.Field of View: 3.5mm-50mm

5.Working Distance: 46mm-95mm, 95mm is standard working distance.

Optional Objective Lenses: 0.5X, 0.8X and 2.0X (no work with 2D/ 3D Rotary Observation lens attachment)

Optical Parameter

Objective Lens0.5X1X2X
N.A.0.0058-0.0410.012-0.080.014-0.1
Res. (lp/mm)17.3-12235.8-23841-298
MAG.0.16X-1.13X0.32X-2.27X0.65X-4.55X
D.O.F. (mm)16.3-0.336-0.0862.8-0.055
W.D. (mm)1909545.6
F.O.V. (mm) 1/2″50-725-3.512.3-1.8

2D/3D Angle

Rotary Observation: 360 degree Angle 3D Attachment for a 1X Objective Lens (Standard)

1. Depth of field: 6mm

2. White Balance: Manual

3. W.D: 95mm (Long working distance)

4. Change 2D to 3D image

5. Same working distance

6. Superior resolution

7. Consistent centre position

Package Contents

  • BIHT1008 Zoom Microscope Body,
    • Zoom Range: 0.3X-2.2X,
    • Zoom Ratio: 1:7;
    • Total Optical Magnification: 7x-150x (base on 17″LCD, Maximum 300X);
    • Field of View: 3.5mm -50mm,
    • Working Distance: 95mm,
    • Depth of field: 6mm
  • 2D/3D Angle Lens Attachment
  • Switch between 2D image and 3D image,
    • image definition and centroal postion remain the same, no need to adjust focus when switch or zooming.
  • 1X Standard Objective Lens
  • 1X Video Couplers
