Save $2,112

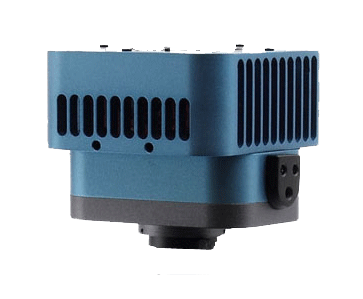

BIC-1400-TCH Series 1.4MP 2/3″ 6.45μm/pixel Cooled CCD Microscope Camera


1-stage or 2-stage Cooled  CCD,
Color/Mono; USB2.0,
1.39MP (1360 x 1024), 2/3″ Sony ICX285, 6.45μm/pixel, 7-15fps, 8bit.
Software: IsCapture, Windows/Mac. & Tsview Windows

$2,888.00 $5,000.00

  • Real scientific-grade colorful/mono 2/3” CCD image sensor with high sensitivity and low image noise, no compression, no interpolation;
  • Perfect image quality, high dynamic range with the perfect detail;
  • High speed image preview and fast focus;
  • 2 types semiconductor cooling mode: 1-stage cooling and 2-stage cooling;
  • Noise Reduction: 2-stage semiconductor cooling to -45°C below of room temperature;
  • Support Windows XP / Vista / 7 / 8 / Mac / Linux Operation System;
  •  C-mount, 0.66X, 0.7X or 1x microscope adapters and 30mm, 30.5mm connecting rings are optional;
  • Durable aluminum alloy shell.

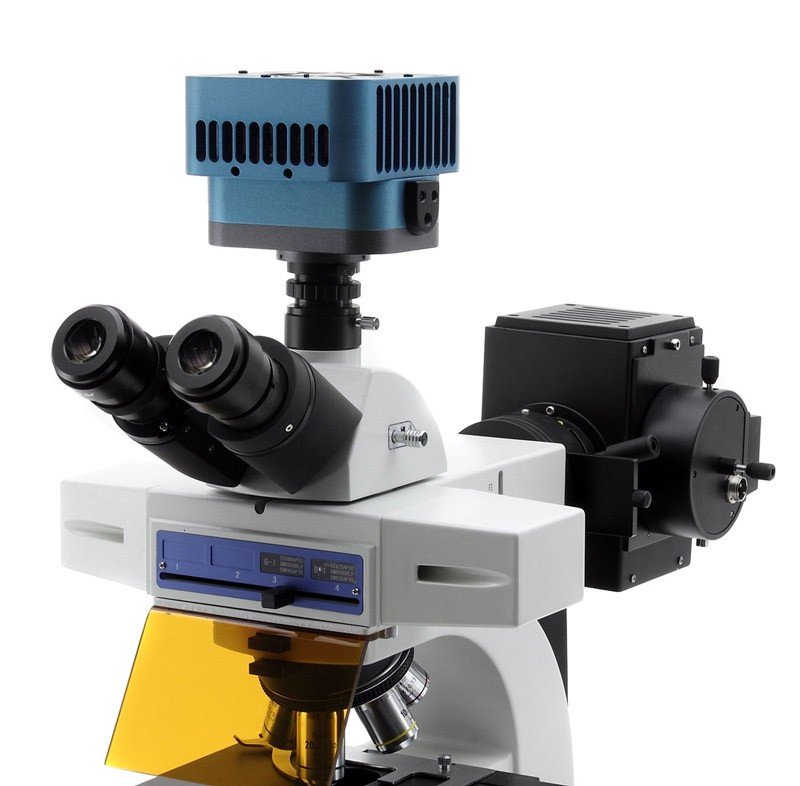

BIC-1400TCH series cooled CCD digital cameras are high quality CCD cameras. Real scientific grade CCD sensors are adopted and images and videos can be captured with high sensitivity and low image noise. With C-mount, these cameras can be connected to trinocular microscopes, fluorescence microscopes, and metallurgical microscopes to capture a variety of bright field, dark field, and fluorescence images in life science and industrial applications.

Color Sensor:

ModelBIC1400TCH-C
DescriptionUSB2.0 colorful high sensitive cooled CCD 1.4MP digital camera
Image Sensor2/3 inch, colorful 1.4MP Sony CCD ICX285AQ
Pixel Size6.45μm×6.45μm
G Sensitive1240mV
Scan ModeProgressive Scan
Filtercolor
Max Resolution1360H × 1024V
Frame Rate[email protected]×1024

[email protected]×520 (2×2 binning)

Dynamic Range78dB
SNR60dB
Lens InterfaceStandard C-mount
Low-speed Readoutok
A/D conversion12 bit
Peltier cooled-30°C below ambient
Fan30×30/5000rpm
Power3.5V exterior power supply
White BalanceAuto / Manual
Exposure ControlAuto / Manual
Exposure Time0.1ms~60mins
Image OutputUSB2.0, 480Mb/s
Parameters ControlImage size, Contrast, brightness, R.G.B gain, exposure time
Software FunctionImage display, image processing, video
Working Temperature0°C~60°C
Storage Temperature-20°C~70°C
Working Humidity10%-90%
Dimension100mm×81mm×48mm (length × width × height)
Gross Weight480g



Monochrome model specs:

ModelBIC1400TCH-C
DescriptionUSB2.0 mono high sensitive cooled CCD 1.4MP digital camera
Image Sensor2/3 inch, colorful 1.4MP Sony CCD ICX285AL
Pixel Size6.45μm×6.45μm
G Sensitive1240mV
Scan ModeProgressive Scan
FilterMono
Max Resolution1360H × 1024V
Frame Rate[email protected]×1024

[email protected]×520 (2×2 bin)

Dynamic Range79dB
SNR60dB
Lens InterfaceStandard C-mount
Low-speed Readoutok
A/D conversion12 bit
Peltier cooled-30°C below ambient
Fan30×30/5000rpm
Power3.5V exterior power supply
White BalanceAuto / Manual
Exposure ControlAuto / Manual
Exposure Time0.1ms~60mins
Image OutputUSB2.0, 480Mb/s
Parameters ControlImage size, Contrast, brightness, R.G.B gain, exposure time
Software FunctionImage display, image processing, video
Working Temperature0°C~60°C
Storage Temperature-20°C~70°C
Working Humidity45%-85%
Dimension100mm×81mm×48mm (length × width × height)
Gross Weight480g



Package Contets

The cooled CCD cameras are packed in aluminum cases, the package includes:

Digital camera (standard C-mount)1
1.8 meters USB cable1
Peltier cooled power supply1
Peltier cooled cable1
CD (Driver, software)1
Manual (soft copy)1
Aluminum case1

Two softwares are offered at no extra cost. Free updated version will be avilable too.

iSCapture Software Manual

TSView Software Manual

SDK driver is avilable too.

Two softwrares are offered at no extra cost. Free updated version will be avilable too.

iSCapture Software Manual

TSView Software Manual

SDK driver is avilable too.
