BioCam 3D-20 3-Dimensional Super EDF Auto-Focus Measuring Camera System

BioCam 3D-20 is a camera system which can be used easily with any microscope such as upright, inverted or stereoscope. It does not need any motorized focus.

It has a smart built-in software which can acquire images directly, measures the 3D features and offers great image analysis.


  • Easy to Use

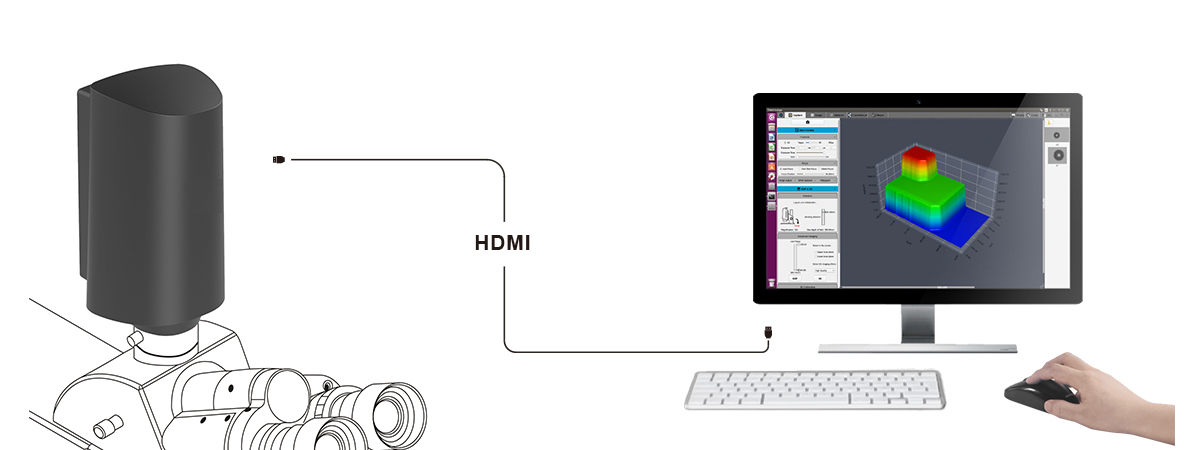

    Output to HDMI monitor, control by mouse, NO NEED computer, directly obtain & measure 3D images.

  • Wide Usage

    Standard C Mount, can be used with different microscopes such as metallurgical, stereo, mono tube, etc

  • Auto-Focus Measurement

    Under the 10X objective lens, the accuracy of 2D and 3D measurement can reach 2 micrometers.

BioCam 3D-20 Smart 3D Profiler Autofocus EDF HD Imaging System

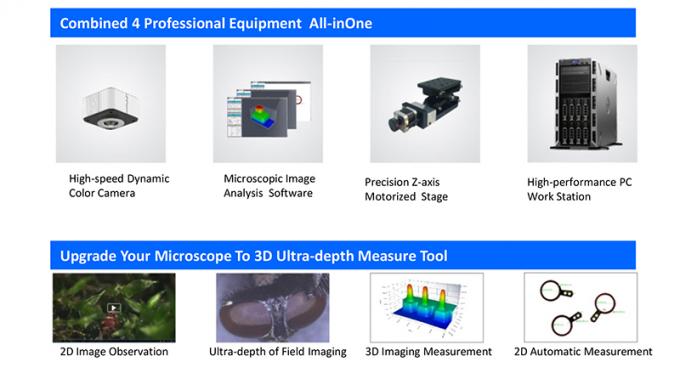

BioCam 3D-20 3-Dimensional Super EDF Auto-Focus Measuring Camera System offered here has the characteristics of high integration and flexible application. No further modification is required by a microscope user. It can be directly used with any microscope you have without any further efforts. The operation is super simple. All functions can be completed by the mouse clicks. Performance is guaranteed for integrated linkage: The built-in intelligent heterogeneous computer host can directly perform a large number of calculations instead of a computer. Operation is really fast, smooth and stable. Real-time ultra-depth of field (DOF) and 3D modelling algorithm can help the microscopy system to realize the three-dimensional observation and measurement analysis of the whole body; automatic edge recognition algorithm. It can also further improve the efficiency of microscopic observation and batch work.

This accessory is an excellent choice for someone who likes to get a 3D profile image of a part, measure height or thickness of a sample. This fits perfectly to all microscopes. We will help to get the best performance of the system. We can study your current microscopy setup and can offer a custom imaging bundle to help you use this at the best shape.



BioCam 3D-20 3D Super EDF Auto-Focus HDMI Digital Camera Specifications

Camera Features Sensor Sony 1/2″color CMOS
Resolution 2MP 1080P (1920×1080)
Pixel size 3.75μm×3.75μm
Shutter mode Rolling
Scanning method Progressive scanning
Frame rate 60fps (Normal) via HDMI cable , 30fps (WDR) via USB 3.0 cable
Gain Automatic / Manual
Exposure time Automatic: 0.1ms-16.6ms, manual: 0.0001s-1s
White balance Automatic, manual, region of interest (ROI)
Image storage TIFF, JPEG
Video format AVI, MP4 (1080P)
Advanced Features
3D noise reduction Supported
WDR Supported

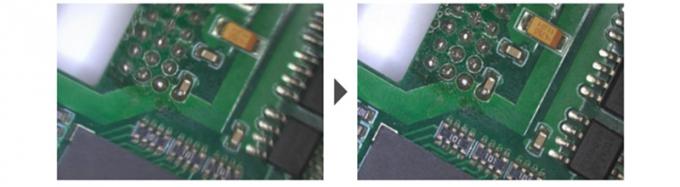

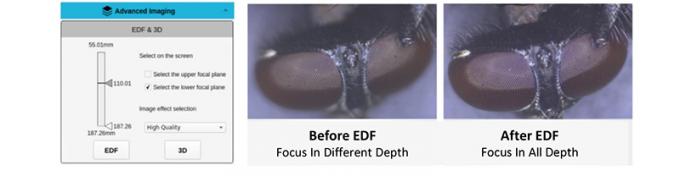

Real-time EDF Supported
Edge enhancement Supported
Gamma correction (contrast) Supported
Color enhancement Supported
Flat field correction Support
Effect mode Normal, Negative, Relief, Grayscale
3D display and
Online calibration Support

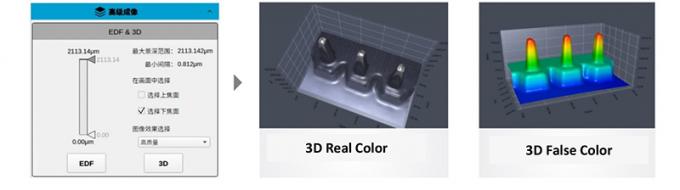

3D display Pseudo-color/real scene display, grid lines, 360°rotation
3D histogram Support

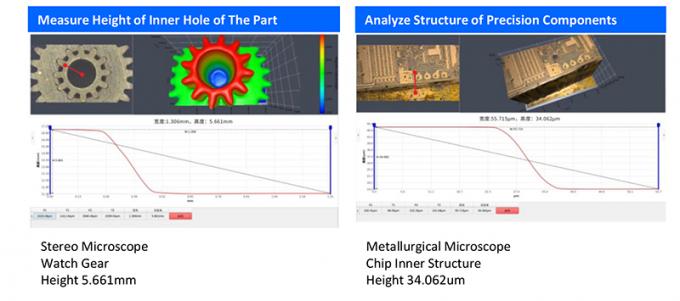

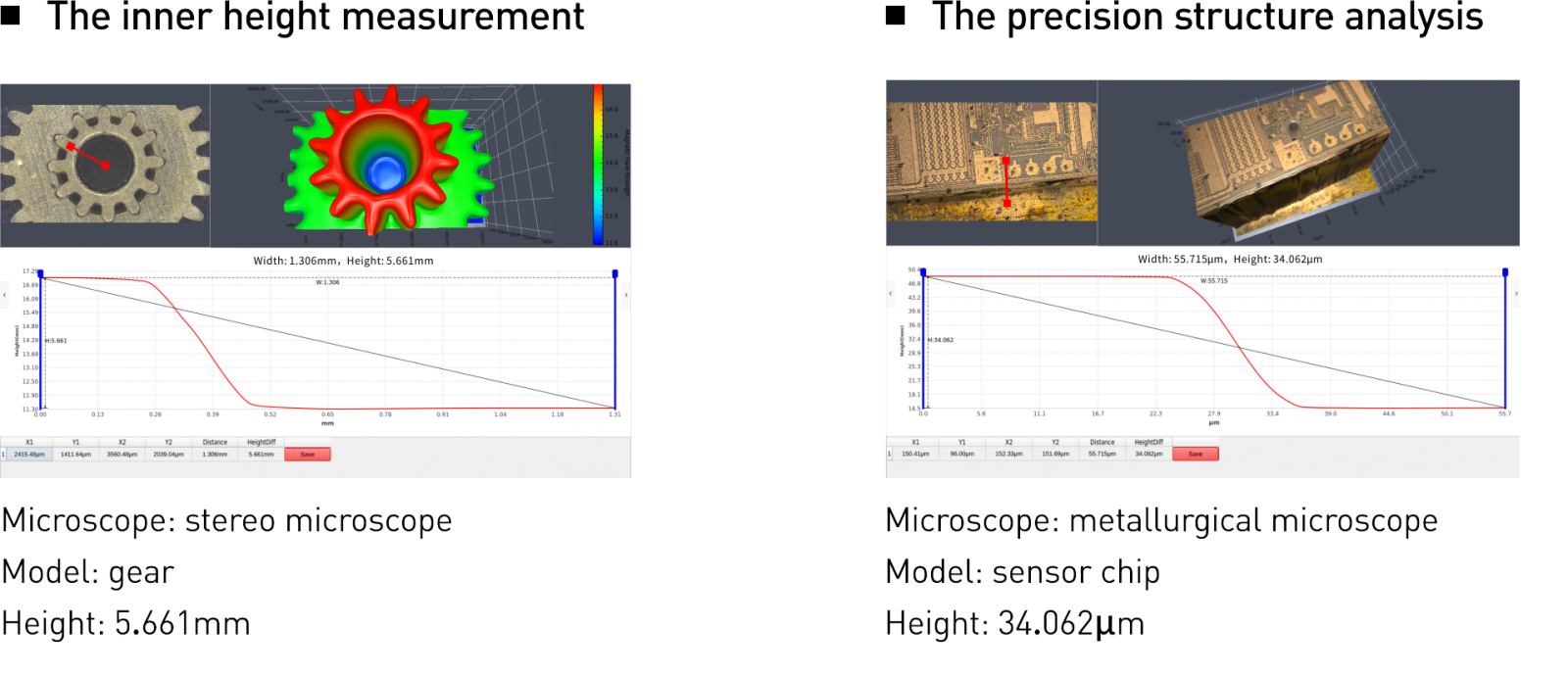

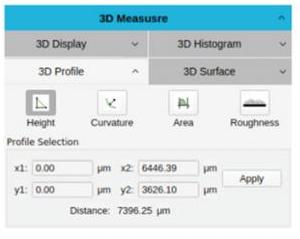

3D profile measurement Height difference, curvature, area, roughness
3D surface measurement Step height, volume, surface roughness
Z range (depth of field) 23000μm
3D measurement accuracy

(10X objective lens)

3D repeatability (10X) ±1μm

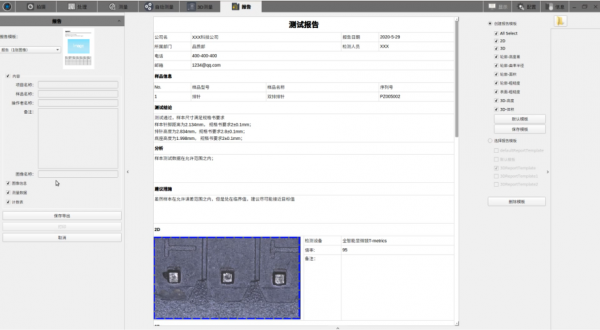

3D measurement report Support, editable template
2D measurement 2D calibration ruler Support
2D manual measurement Point-point, point-line, line-line,Parallel, perpendicular,
Counter polygon, circle, arc, concentric circle, circle-circle, ang
2D measurement accuracy (10X) ±2μm
2D repeatability (10X) ±2μm
2D measurement report Support

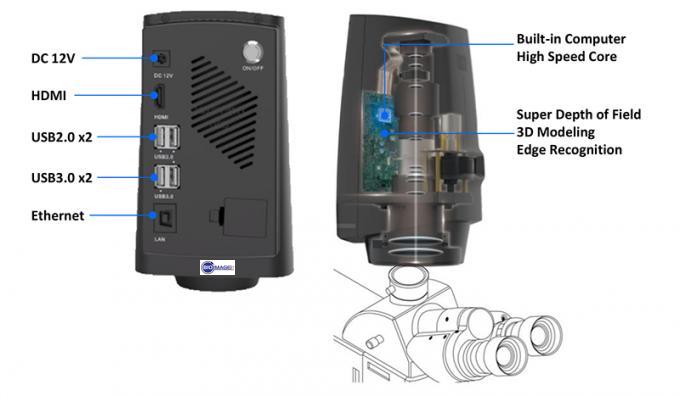

Input Mouse input USB mouse
Keyboard input USB keyboard
Interface Optics Standard C-Mount
Video HDMI 2.0
Internet connection Fast Ethernet
USB USB2.0 x 3, USB3.0 x1
Others Storage capacity Built-in 32G Emmc
Power supply 12V 8A
Weight 2.5kg
Appearance size (WxHxD) 87cm*181cm*103cm
Working environment 5℃-40℃ (temperature)

45%-85% (humidity)

Real Time 3D Imaging
